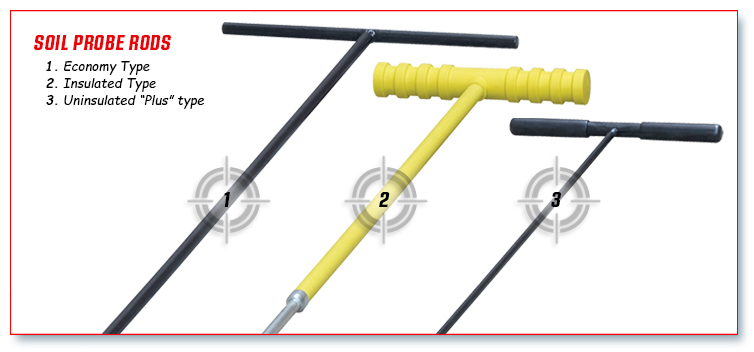

Soil Probe Rods – Insulated and Non-Insulated Styles
Probe Rods are Used for Locating Buried Lines.

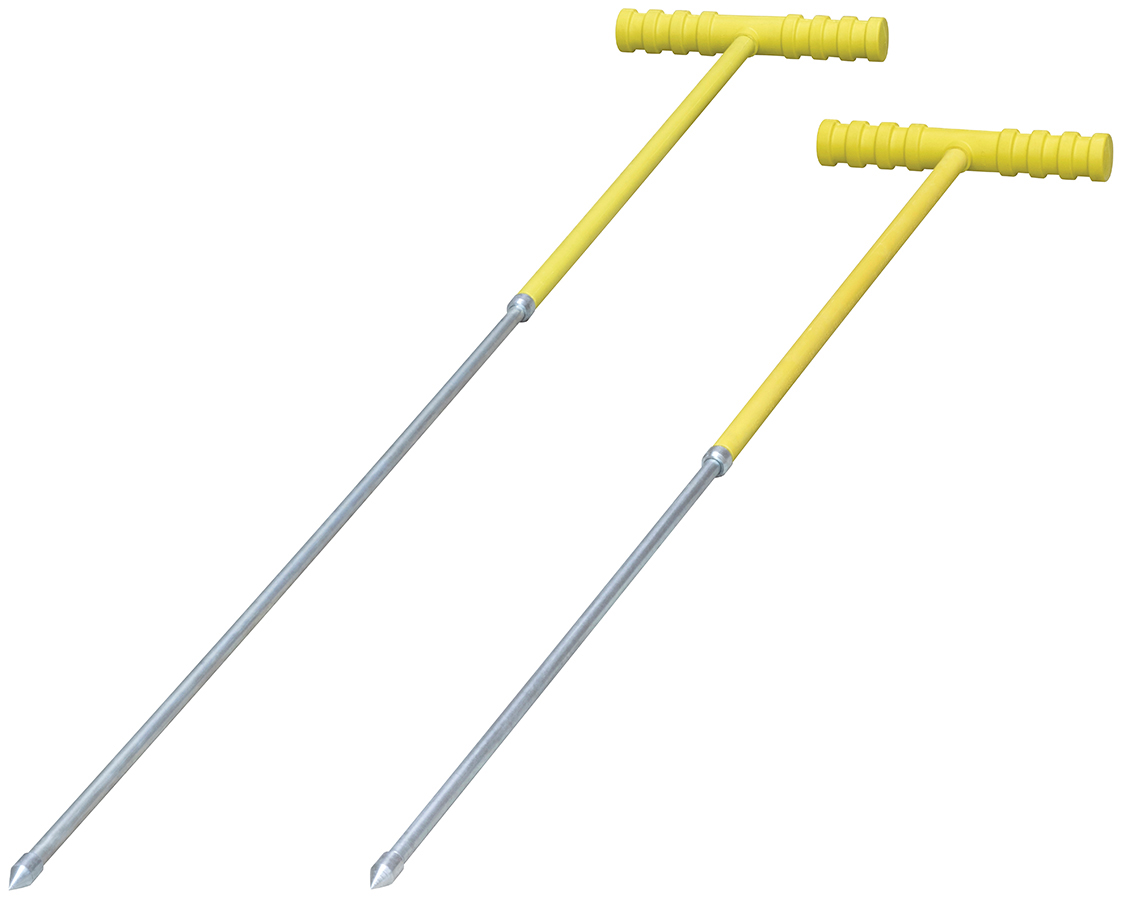

INSULATED TYPE SOIL PROBE RODS
Feature non-conducting, molded rubber handle and shield on upper section of shaft.
Molded rubber coverings have been
laboratory tested to assure protection against electrical shock from
accidental contact with buried SECONDARY electrical lines.
Replaceable alloy steel tip.
Trumbull Item No.
Overall Length
Weight
367-9080
4 ft.
4.00 lbs.
367-9090
5 ft.
4.25 lbs.

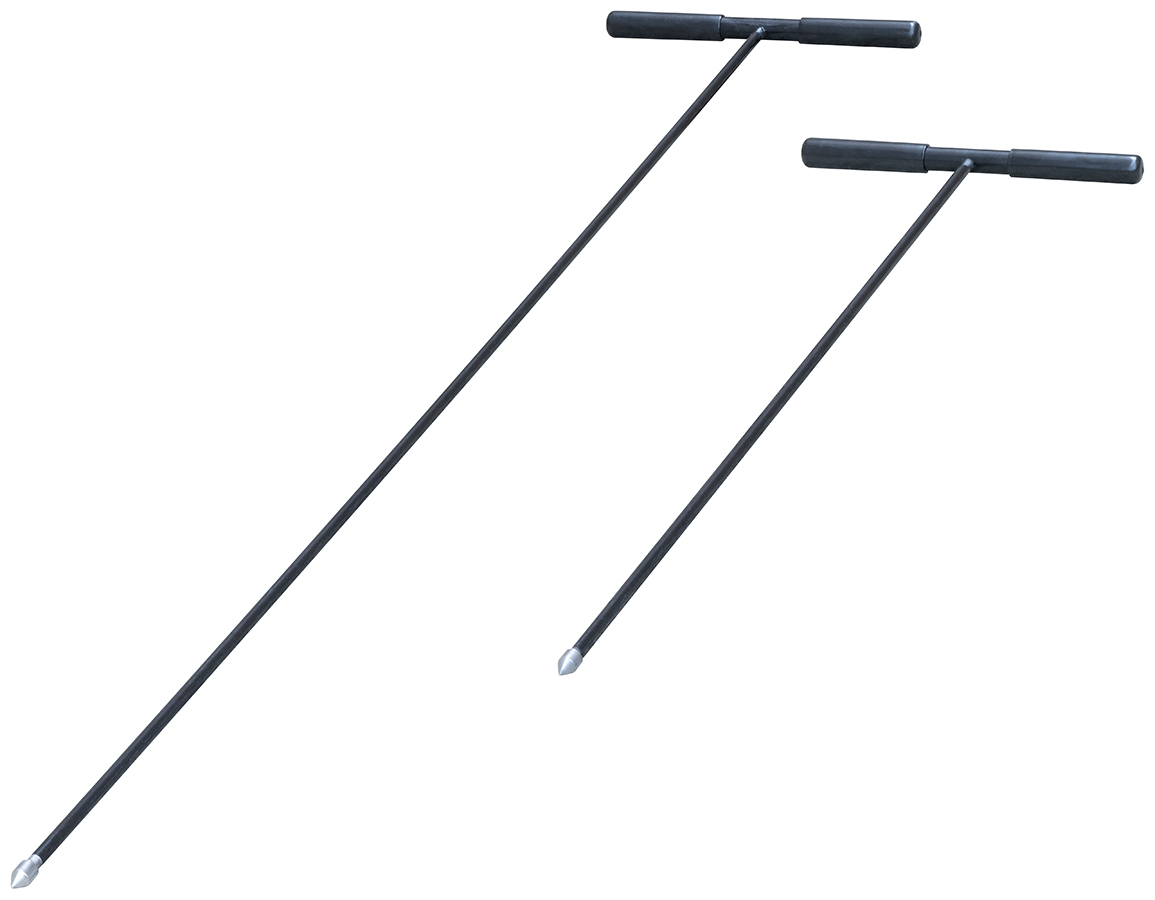

UNINSULATED “PLUS” TYPE SOIL PROBE RODS
Feature replaceable tips and handle grips.
Made from 3/8″ rod.
Handle grips DO NOT provide insulation from electrical lines.
Available in both carbon steel and stainless steel models.
Replaceable stainless steel tips.
Carbon Steel Models
Trumbull Item No.
Overall Length
Weight
367-9082
3 ft.
2.50 lbs.
367-9083
4 ft.
2.80 lbs.
367-9084
5 ft.
3.25 lbs.
367-9085
6 ft.
3.60 lbs.
Stainless Steel Models
Trumbull Item No.
Overall Length
Weight
367-9086
3 ft.
2.50 lbs.
367-9087
4 ft.
2.80 lbs.
367-9088
5 ft.
3.25 lbs.
367-9089
6 ft.
3.60 lbs.

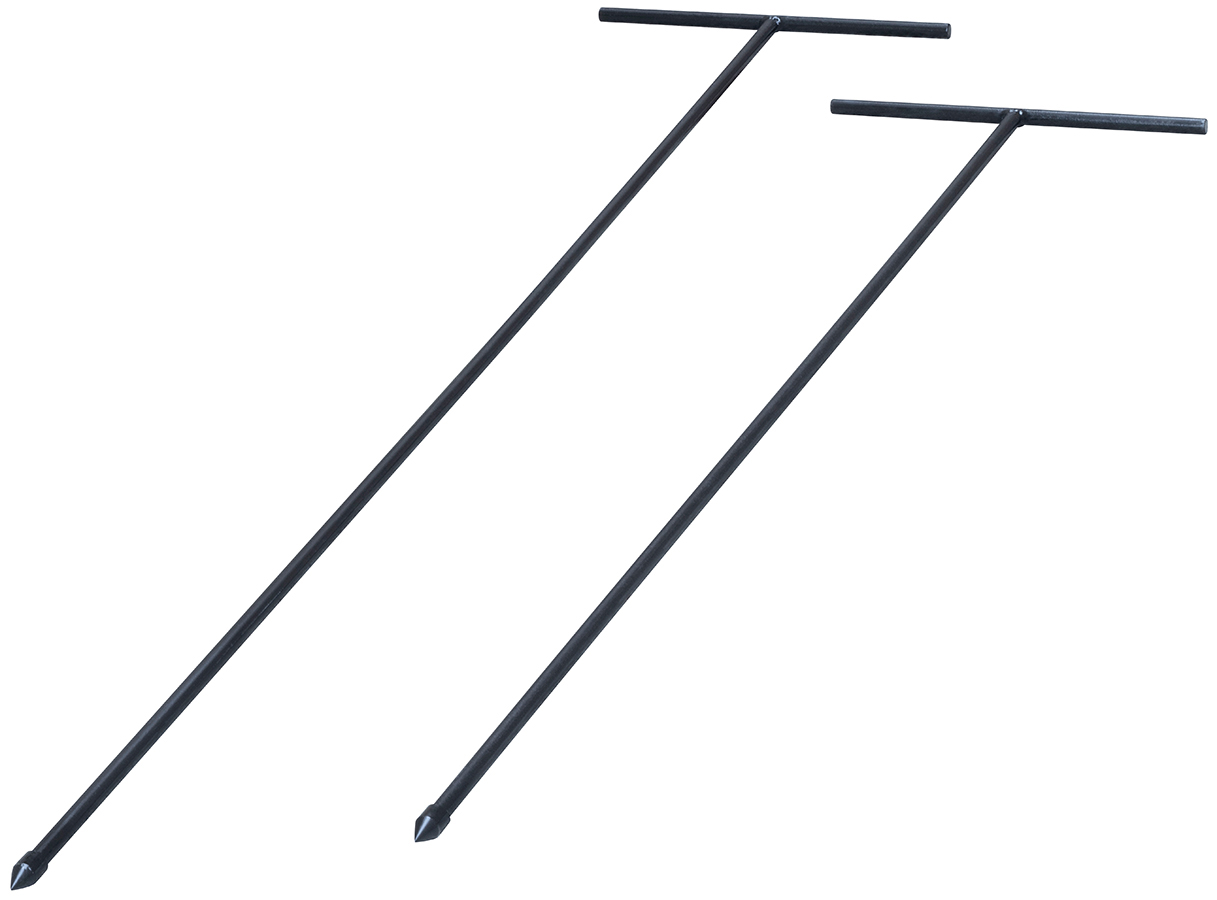

ECONOMY TYPE SOIL PROBE RODS
Feature a shaft and handle made from 1/2″ rod.
Carbon steel.
12″ welded handle.
Epoxy-applied tips.
Trumbull Item No.
Overall Length
Weight
367-9081
4 ft.
4.00 lbs.
367-9091
5 ft.
4.25 lbs.
REPLACEMENT ALLOY STEEL TIPS
Alloy Steel Tip for Probe Rod Models
For Insulated Type Soil Probe Rods only.
Trumbull Item No.
Weight
367-9095
0.05 lbs.
Alloy Steel Tip for Probe Rod Models
For Carbon Steel “Plus” Soil Probe Rods.
For Stainless Steel “Plus” Soil Probe Rods.
Trumbull Item No.
Weight
367-9097
0.10 lbs.
REPLACEMENT GRIPS
For Carbon Steel “Plus” Soil Probe Rods.
For Stainless Steel “Plus” Soil Probe Rods.
Trumbull Item No.
Weight
367-9096
0.10 lbs.
