Socket Clamps

ALSO KNOWN AS “RETAINER CLAMPS” OR “FRICTION CLAMPS”

For use in preventing underground pipe joints from separating. They are designed for centrifugally-spun cast and ductile iron pipe with OD’s as shown in the table below.

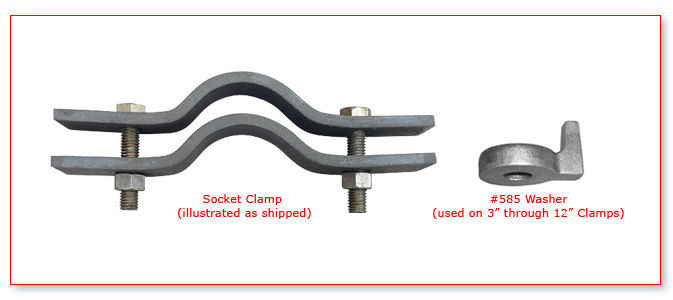

All Socket Clamps include two half clamps, two bolts and nuts and two washers. Sizes 3″ through 12″ are supplied with #585 cast washers, which are shown below as replacement parts. Sizes 14″ and larger are supplied with two fabricated washers.

Used with all-thread rod and Trumbull tie-lugs or tie-bolts for joint restraint (click HERE for link).

STEEL SOCKET CLAMPS

Trumbull Item No.	Size	Bolt Size	Stock Size	Pipe OD	Weight
364-3401	3"	5/8" x 3"	3/8" x 2"	3.96	5.65 lbs
364-3402	4"	5/8" x 3"	1/2" x 2"	4.8	7.15 lbs
364-3403	6"	5/8" x 3"	1/2" x 2"	6.9	8.75 lbs
364-3404	8"	5/8" x 3"	1/2" x 2"	9.05	10.60 lbs
364-3405	10"	5/8" x 3"	1/2" x 2"	11.1	12.35 lbs
364-3406	12"	5/8" x 3-1/2"	1/2" x 2"	13.2	13.80 lbs
364-3428	14"	7/8" x 4"	3/4" x 3"	15.8	48.00 lbs
364-3429	16"	1" x 4-1/2"	3/4" x 4"	17.4	70.00 lbs
364-3430	18"	1-1/4" x 4-1/2"	3/4" x 4"	19.5	79.00 lbs
364-3431	20"	1-1/4" x 4-1/2"	3/4" x 4.5"	21.6	91.00 lbs
364-3432	24"	1-1/2" x 5"	3/4" x 5"	25.8	118.00 lbs

304 STAINLESS STEEL SOCKET CLAMPS

Includes 304SS half clamps, stainless steel washers, and stainless steel hardware

Trumbull Item No.	Size	Bolt Size	Stock Size	Pipe OD	Weight
803-3401	3"	5/8" x 3"	3/8" x 2"	3.96	5.65 lbs
803-3402	4"	5/8" x 3"	1/2" x 2"	4.8	7.15 lbs
803-3403	6"	5/8" x 3"	1/2" x 2"	6.9	8.75 lbs
803-3404	8"	5/8" x 3"	1/2" x 2"	9.05	10.60 lbs
803-3405	10"	5/8" x 3"	1/2" x 2"	11.1	12.35 lbs
803-3406	12"	5/8" x 3-1/2"	1/2" x 2"	13.2	13.80 lbs

#585 WASHERS

Used with 3″ through 12″ Socket Clamps
Usage for 3/4″ all-thread rod
Two washers are required for each Socket Clamp used

Trumbull Item No.	Bore Size	Material	Weight
364-9000	1"	ductile iron	0.80 lbs.
803-9000	1"	stainless steel	0.80 lbs.
