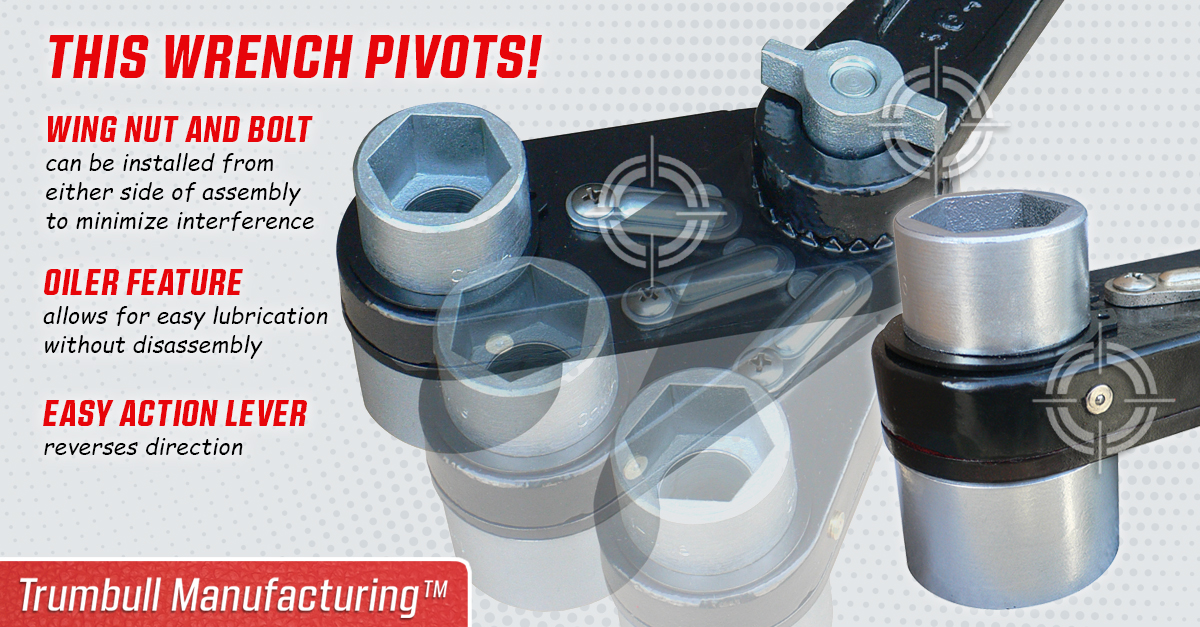

Pivoting Handle Double Socket Ratchet Wrenches

Heavy-duty double socket incorporates a through design which can tighten nuts on long bolts or all-thread rod without bottoming out.
Double socket permits use on either 5/8″ or 3/4″ Heavy Hex Nuts without changing sockets. Also eliminates common misplacement of loose sockets and introduction of dirt into the mechanism while changing sockets in the field.
Mechanism design allows short stroke operation.
Heavy-duty ratchet mechanism is lubricated and enclosed in a sealed ductile iron casting to prevent debris from jamming.
Wrench is painted black and is 16″ O.A.L.
Painted black.

LARGE SOCKET

fits heavy hex nuts on 3/4″ bolts, used on 4″ thru 24″ Mechanical Joints.

SMALL SOCKET

fits heavy hex nuts on 5/8″ blots used on clamps, couplings, saddles and 3″ Mechanical Joints

Trumbull Item No.	Large Socket	Small Socket	Large Socket Fits Hex Size	Small Socket Fits Hex Size	Example of Large Socket Applications	Example of Small Socket Applications	Product Weight
364-9984	1-1/4"	1-1/16"	3/4" Heavy	5/8" Heavy	4" thru 24" MJ Ftgs., 3/4" Hex Bolts with Heavy Hex	3" MJ Ftgs., Cast Couplings, Clamps, Tapping Sleeves	4.75 lbs.
364-9955	36mm	30mm	M24	M20	400mm - 500mm Pipe Flanges	200mm - 350mm Pipe Flanges	2.15 KG
