   Home      Trumbull - Main Valve Keys











Main Valve Keys

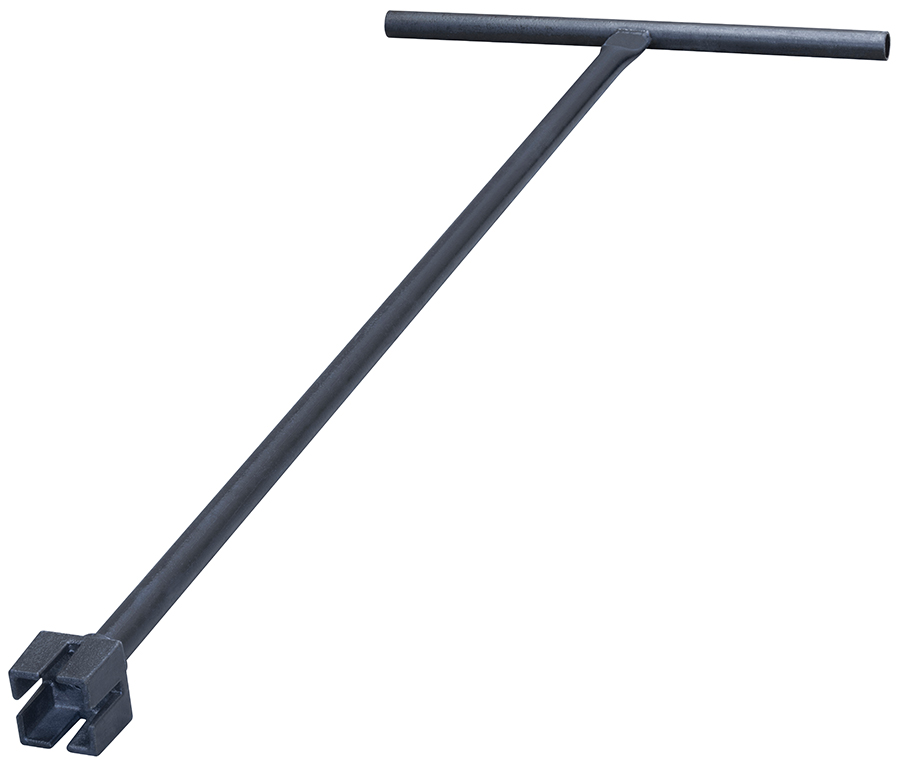

1) T-HANDLE MAIN VALVE KEYS

  • Handle and shafts fabricated from 1″ Sch 40 steel pipe
  • Cast steel socket that fits 2″ square operating nut



Trumbull Item No. Length Weight
367-5016 2 ft. 9.15 lbs.
367-5017 3 ft. 10.70 lbs.
367-5018 4 ft. 12.10 lbs.
367-5019 5 ft. 13.35 lbs.
367-5020 6 ft. 15.30 lbs.
367-5021 7 ft. 17.10 lbs.
367-5023 8 ft. 18.80 lbs.
367-5026 10 ft. 20.00 lbs.
367-5028 12 ft. 22.00 lbs.

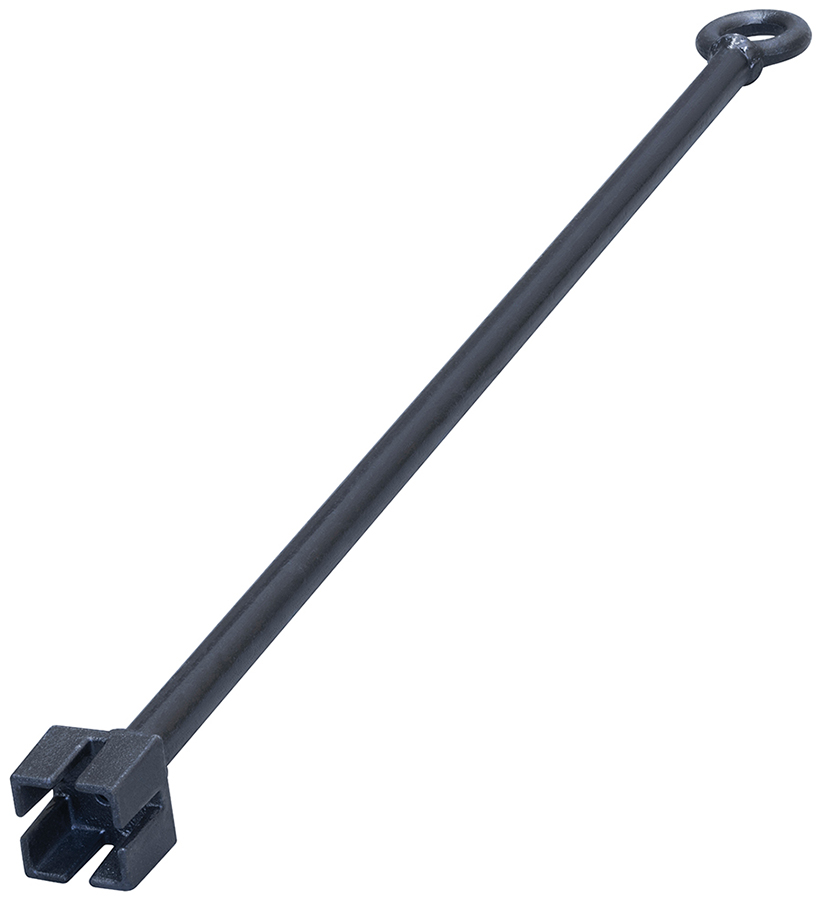

2) RING HANDLE MAIN VALVE KEYS

  • Features a forged steel top ring
  • 1″ Sch 40 steel pipe shafts
  • Cast steel socket fits 2″ square operating nut



Trumbull Item No. Length Weight
367-5124 4 ft. 11.40 lbs.
367-5125 5 ft. 13.00 lbs.
367-5126 6 ft. 14.30 lbs.
367-5127 7 ft. 15.50 lbs.
367-5128 8 ft. 18.00 lbs.





3) LIGHTED MAIN VALVE KEYS

  • Handles and shafts fabricated from 1″ Sch 40 steel pipe.
  • Cast steel casting fits 2″ square operating nut.
  • Bottom casting has mud slots that prevent packing of dirt inside socket.



     LIGHTED CURB KEYS

  • Handles and shafts fabricated from 3/4″ Sch 40 steel pipe.
  • Combination curb key casting fits t-head of curb stops up to 2″, standard pentagon nut and various curb box rods.
  • The curb key casting has an OD of 1-1/4″ and is designed for Buffalo curb boxes, meter boxes, or arch pattern boxes with 1-1/2″ or larger upper pipe sections.







LIGHTED MAIN VALVE KEYS


Trumbull Item No. Length Weight
367-5118 4 ft. 12.80 lbs.
367-5119 5 ft. 14.10 lbs.
367-5120 6 ft. 15.40 lbs.
367-5123 8 ft. 18.00 lbs.





LIGHTED CURB KEYS


Trumbull Item No. Length Weight
367-4391 3 ft. 6.35 lbs.
367-4392 4 ft. 6.40 lbs.
367-4397 6 ft. 8.45 lbs.

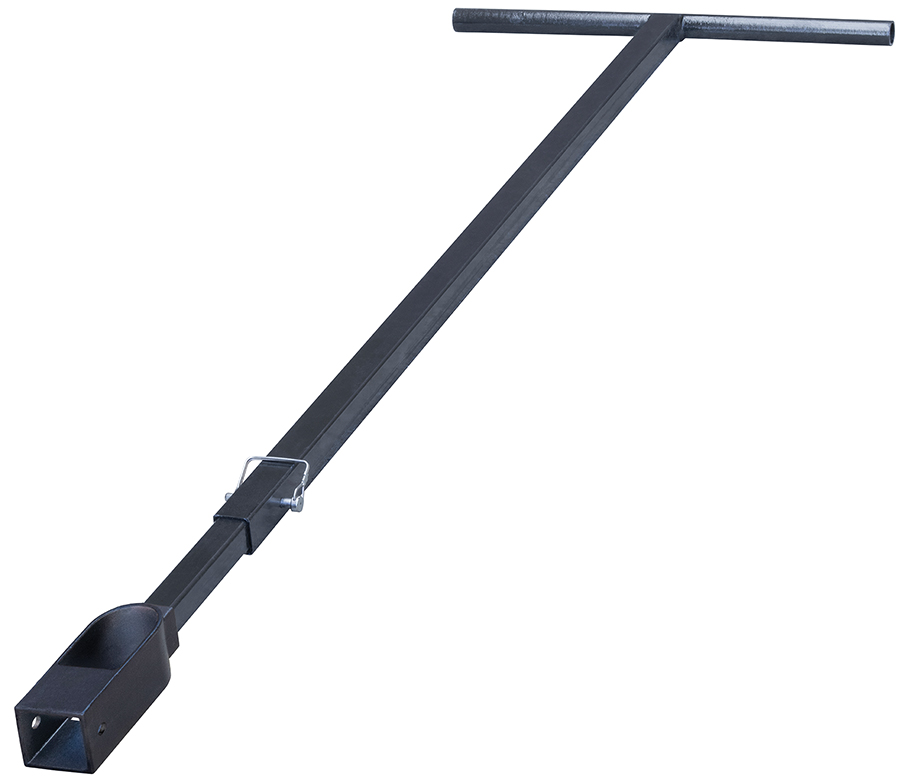

4) TELESCOPING MAIN VALVE KEY

  • Adjustable to fit valve depths of 6′ through 10′
  • 1-1/2″ square upper shaft, 1-1/4″ square lower shaft
  • Steel socket cast with open top mud relief
  • Socket fit 2″ square operating nut
  • Adjustable in one foot increments with wire lock pin







Trumbull Item No. Length Weight
367-5129 6 ft. - 10 ft. 38.50 lbs.

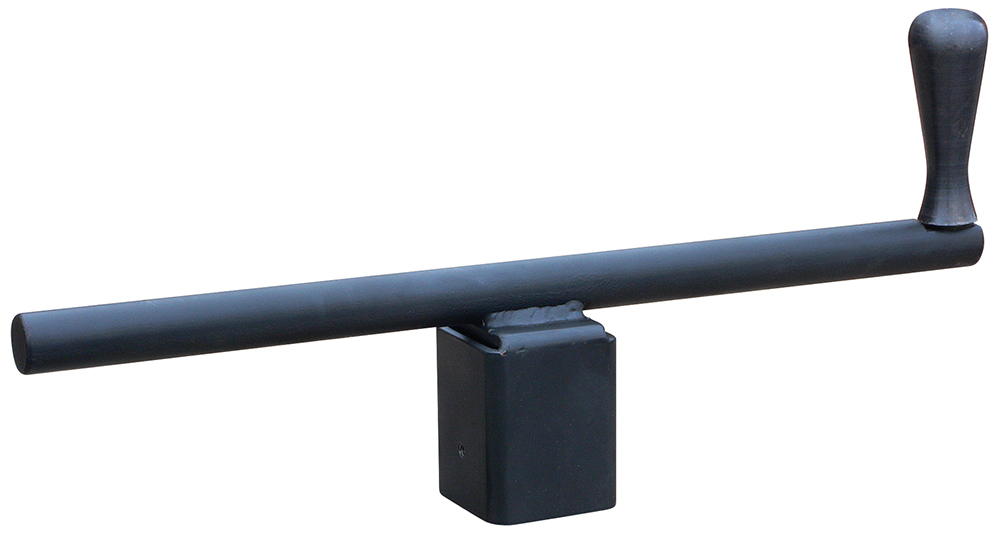

5) GATE VALVE SPEED WRENCH

  • Ideal for operating valves with 2″ AWWA nut, either in the trench or in the yard.
  • Allows use of both hands for extra leverage.
  • Revolving handle allows quick opening and closing.







Trumbull Item No. Length Weight
367-9981 18" 6.20 lbs.
