HiTemp140



HiTemp140-1 (1 inch rigid probe) — 900140-00
HiTemp140-2 (2 inch rigid probe) — 900153-00
HiTemp140-2-TD (2 inch transitional diameter probe) — 900165-00
HiTemp140-5.25 (5.25 inch rigid probe) — 900173-00
HiTemp140-5.25-TD (5.25 inch transitional diameter probe ) — 900180-00
HiTemp140-7 (7 inch rigid probe ) — 900198-00
HiTemp140-FR (2 inch fast response probe) — 900221-00



The HiTemp140 is a submersible, high temperature data logger built for use in harsh environments. This device is extremely versatile and can be tailored to the application with various probe lengths and styles available.

The HiTemp140 can withstand temperatures ranging from -40 °C to +140 °C (-40 °F to +284 °F), but is capable of measuring extended temperatures up to 260 °C (500 °F) (probe dependent). With a storage capacity of up to 65,536 time and date stamped readings, the HiTemp140 can be programmed for immediate start or delayed start up to 18 months in advance.

The HiTemp140 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Body of data logger cannot exceed 140 °C (284 °F), but can extend to higher temperatures when used with MadgeTech’s thermal barrier options.





General

Memory 65,536 readings
Reading Rate 1 reading every second up to 1 reading every 24 hours
Baud Rate 125,000
Battery Life 2 years typical (1 minute reading rate)
User Replaceable Battery
Material 316 Stainless Steel
HiTemp 140 Rigid and Rigid Transitional Diameter Dimensions HiTemp140-1 Body: 1.55 in x 0.97 in dia. (40 mm x 25 mm dia.)
Probe: 1 in x 0.125 in dia. (0.188 in transitional dia.)
25 mm x 3.2 mm dia. (4.8 mm transitional dia.)
Body (for 2 in, 5.25 in, 7 in;): 1.75 in x 0.97 in dia. (45 mm x 25 mm dia.)

HiTemp140-2 : 2.0 in x 0.188 in dia. (51 mm x 4.8 mm)

HiTemp140-2-TD: 2.0 in x 0.125 in dia. (0.188 in transitional dia.)
(51 mm x 3.2 mm dia. (4.8 mm transitional dia.)

HiTemp140-5.25: 5.25 in x 0.188 in dia. (134 mm x 4.8 mm)

HiTemp140-5.25-TD: 5.25 in x 0.125 in dia. (0.188 in transitional dia.)
(134 mm x 3.2 mm dia. (4.8 mm transitional dia.)

HiTemp140-7: 7.0 in x 0.188 in dia. (178 mm x 4.8 mm dia.)
HiTemp140 Fast Response Probe Dimensions Body: 1.89 in x 0.97 in x 0.97 in (48.1 mm x 24.6 mm x 24.6 mm)
Probe: 1.75 in x 0.0625 in dia. (0.188 in transitional dia.) (44.5 mm x 1.59 mm (4.78 mm Transitional dia.))
Key Ring End Cap Key ring replaces standard bottom
Thru-hole: 0.150"
IP Rating IP68
Submersible Yes
Operating Environment -40 °C to +140 °C (-40 °F to +284 °F); 0 %RH to 100 %RH; 0.002 PSIA to 100 PSIA (Body of Logger Cannot Exceed 140 °C)
Required Interface Package IFC400
Approvals CE




Temperature

Temperature Sensor 100 Ω Platinum RTD
Temperature Resolution 0.01 °C (0.018 °F)
Temperature Calibrated Accuracy ±0.1 °C/±0.18 °F (20 °C to +140 °C/68 °F to +284 °F)
±0.3 °C/±0.54 °F (-20 °C to +19.99 °C/-4 °F to +67.98 °F)
±0.4 °C/±0.72 ºF (-40 °C to -20.01 °C/-40 °F to +-4.02 °F)
Probe Temperature Range -200 °C to +260 °C (-328 °F to +500 °F) (Body of Logger Cannot Exceed 140 °C)






Accessories





CF200 Canning Fitting for Data Loggers

  • Canning Fitting for the HiTemp140 Data Loggers.
  • The CF200 Canning Fitting securely attaches MadgeTech HiTemp140 data loggers to jar lids, cans or other containers, with the data logger probe inserted into the container to monitor internal temperatures.
  • The CF200 can withstand temperatures up to 140 °C (284 °F) making it ideal for use in a variety of canning applications in a wide range of industries and environments.
  • Compatible with the HiTemp140-FP, HiTemp140-PT-5, HiTemp140-2-TD, and HiTemp140-5.25-TD data loggers.




DLS100

  • DLS100 – 900087-00
  • The DSL100 (Data Logger Stand) is a compact, portable base for use with the HiTemp140, PRTemp140, PR140, Temp1000 and RHTemp1000 series of MadgeTech data loggers.
  • Made of 316 Stainless Steel, this sleek and handy stand is weighted to help stabilize data loggers while in use or used as a caddy when the logger is stored. It can withstand temperatures up to 150 °C (302 °F).
  • Dimensions: 0.65 in x 1.60 in 1.60 in (16.5 mm x 40.6 mm x 40.6 mm)




ER1425MR-145 Lithium Battery

  • ER1425MR-145 — 900097-00
  • 145 °C 3.6V Lithium Battery, ½ AA Pressure Contact




HiTemp140 O-Rings

  • HiTemp140 O-Rings — 900229-00
  • One set of replacement o-rings for the HiTemp140.


HiTemp140-TS

  • HiTemp140-TS (Vented) — 900262-00
    HiTemp140-TS (Flush) — 900263-00
  • Thermal shield for the HiTemp140 data logger.
  • Available with a vented top or flush top.
  • The HiTemp140-TS is a thermal shield designed for use with the HiTemp140 data logger.
  • This durable enclosure allows the data logger to be used in temperatures from –200 °C to +250 °C, making it ideal for peanut roasting, food processing, autoclave validation and other extreme temperature applications.
  • To use, simply place the HiTemp140 in the IFC400 docking station (sold separately).
  • Use the MadgeTech software to program a start method and reading rate. Place the HiTemp140 in the HiTemp140-TS enclosure and screw it back together.
  • The device is ready to be deployed.




IFC400

  • IFC400 — 900319-00
  • nterface Cable Package for the HiTemp140 and PR140 Data Loggers.
  • Interface Cable Package for the HiTemp140 and PR140 Data Loggers.
  • Includes MadgeTech Software CD, Software Manual, Quick Start Guide, USB Cable and USB Docking Station.


IFC406

  • IFC406 — 900325-00
  • The IFC406 Multiplexer Data Logger Interface allows for multiple devices to be connected into one interface.
  • Each IFC406 allows for 6 data loggers to be connected and communicate through 1 USB port.
  • Includes MadgeTech Software, USB Cable and IFC406 Multiplexer Data Logger Interface.

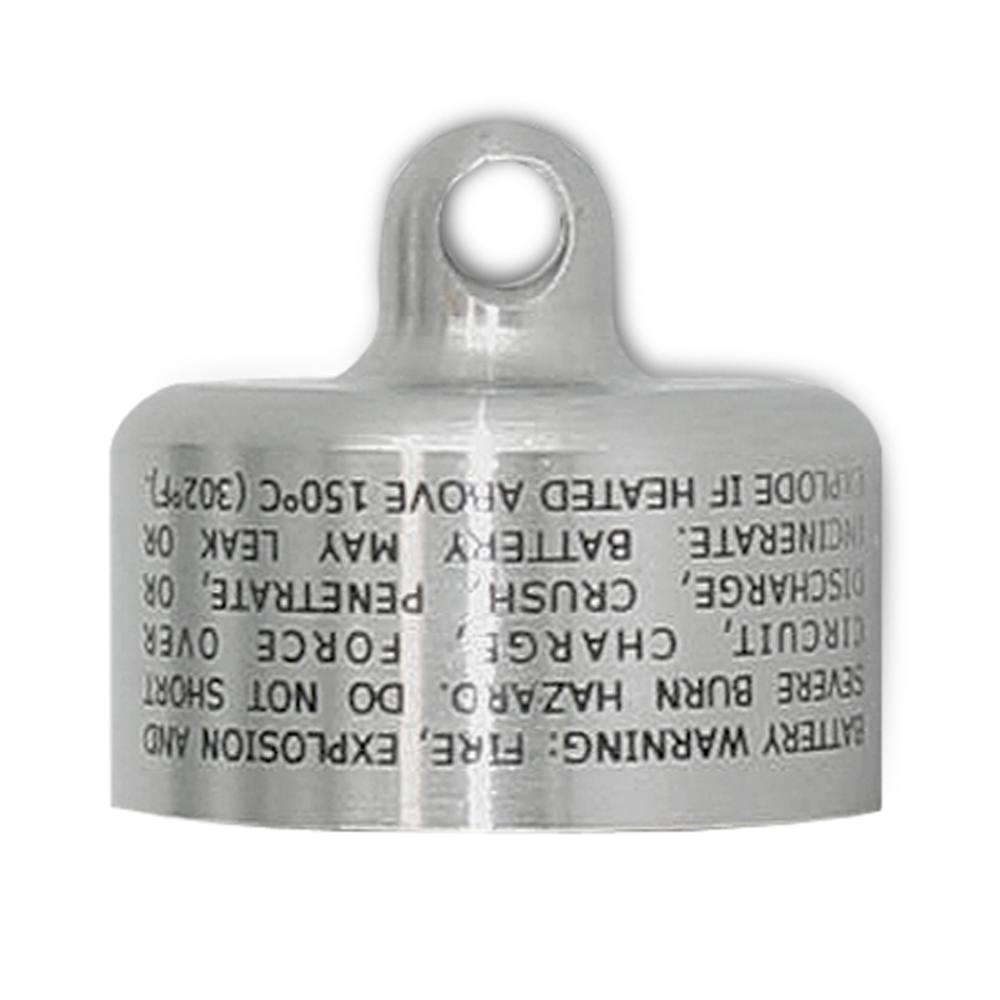

Key Ring End Cap

  • Key Ring End Cap — 900332-00
  • This is an optional “Key Ring” end cap for use with the HiTemp140 Series, PRTemp140, PR140 and RHTemp1000 data loggers. Easily attaches to your key ring or lanyard.
  • The key ring end cap is used in place of the standard bottom. Its thru-hole measures 0.150″ in diameter.

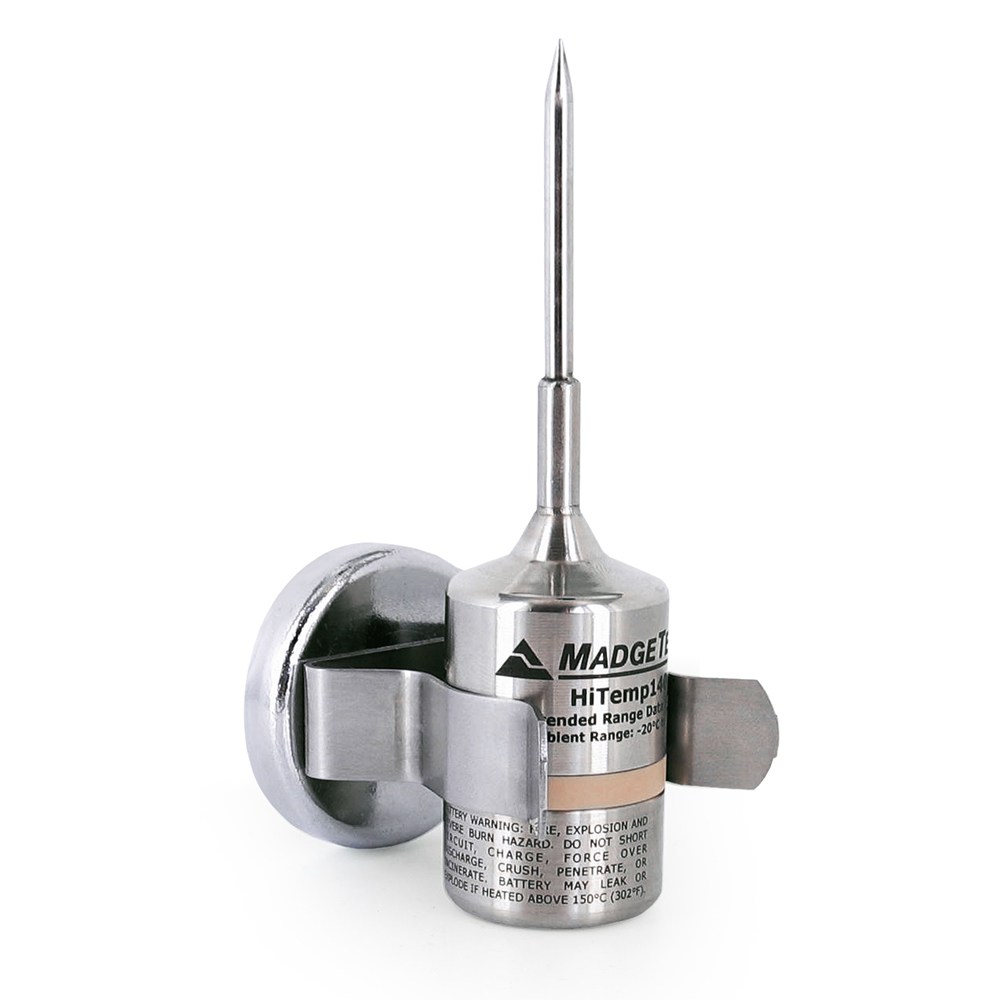

MagMount-1

  • MagMount-1 — 900360-00
  • The MagMount-1 is a magnetic holder for use with the PR140, PRTemp140, HiTemp140, Temp1000, and RHTemp1000 series data loggers.
  • The device can be placed in environments from -80 °C to +80 °C, making it ideal for use in refrigerators, freezers, and incubators.

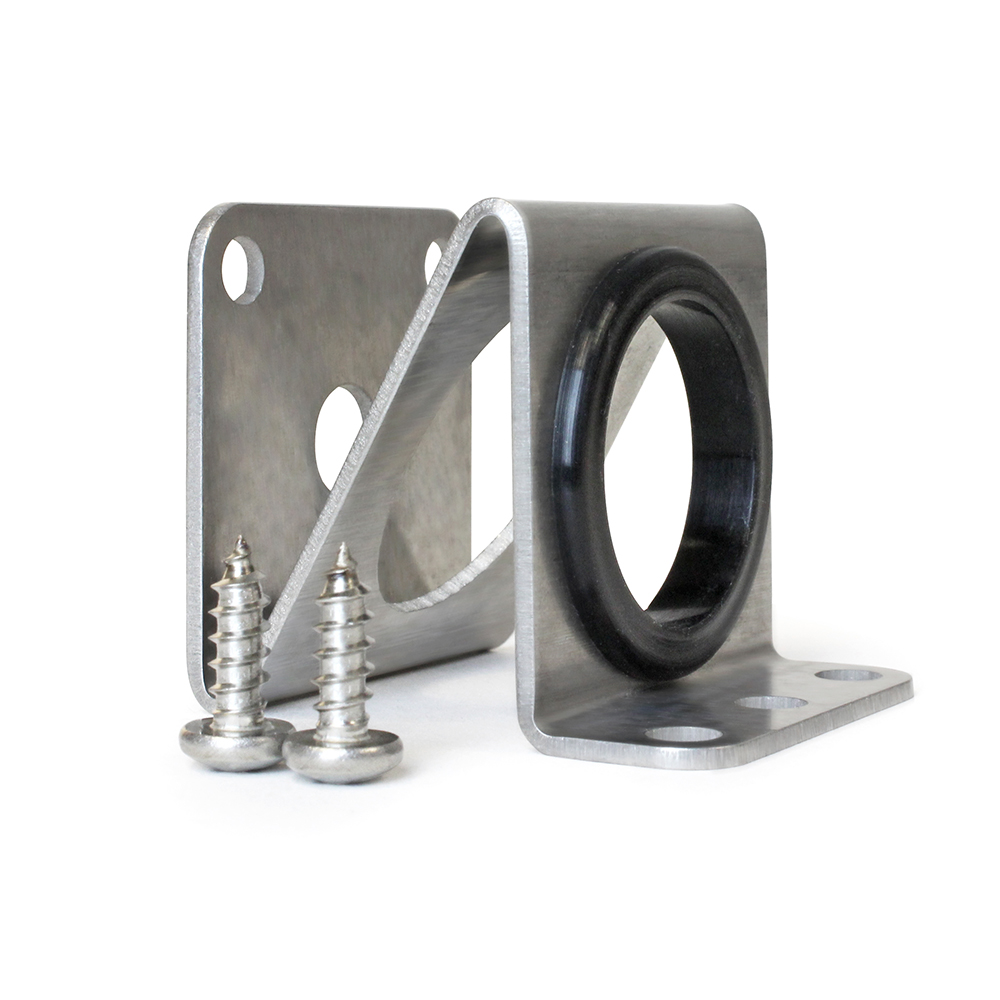

MultiMount-Z Data Logger Stand

  • MultiMount-Z Data Logger Stand — 900388-00
  • The MultiMount-Z is a versatile mount or stand for use with the HiTemp140 series of data loggers and other various loggers of the same body style.
  • It can be used to stabilize a logger inside an autoclave, or screwed to a flat surface to create an anchored base.
  • Made of 316 Stainless Steel, the MultiMount-Z is able to withstand temperatures up to 150 °C making it ideal for use in autoclave sterilization processes.
  • Compatible with the following MadgeTech data loggers:
    • Hi Temp140 Series (all models)
    • RHTemp1000, RHTemp1000IS, Temp1000Ex
    • PR140, PRTemp140
    • Temp1000IS, Temp1000Ex
  • Dimensions: 1.75 in x 1.5 in x 1.5 in (44.5 mm x 38 mm x 38 mm)

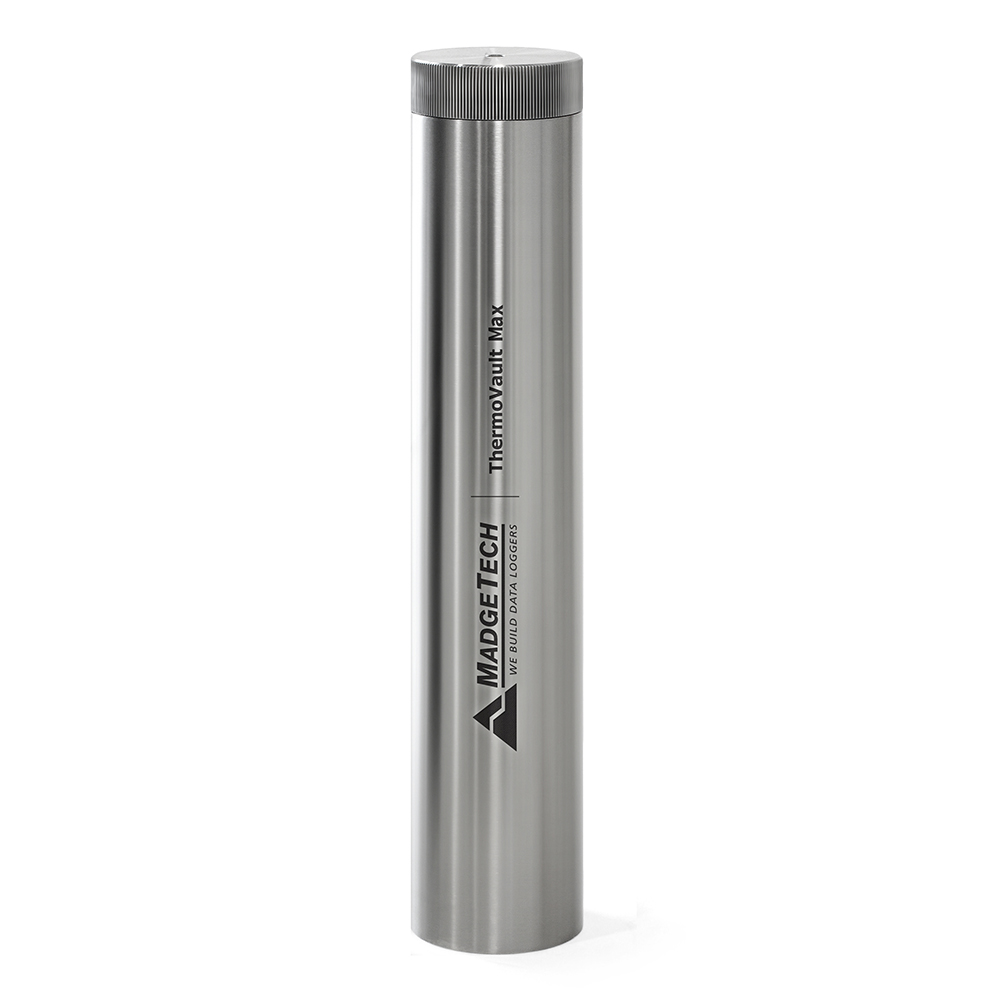

ThermoVault Max Extreme Temperature Thermal Barrier

  • ThermoVault Max Extreme Temperature Thermal Barrier — 900000-00
  • The ThermoVault Max is an extreme, high temperature thermal barrier designed for use with MadgeTech’s HiTemp140-M12, HiTemp140-FP and HiTemp140-PT data logger models.
  • This durable enclosure is made from stainless steel with PTFE insulation.
  • The ThermoVault Max barrier can withstand temperatures up to +400 °C in dry heat applications and +250 °C for wet applications when used with the TMAX Wet Seal Kit  (sold separately).









HiTemp140 Probe Styles





Example Probe Type Material Operating Environment Probe Measurement Range
Rigid Probe for HiTemp140 Rigid Metal Temperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA		 Temperature: -200 °C to +260 °C (-328 °F to +500 °F)
Probe only. Body must not exceed Operating Environment
Rigid Transitional Diameter Probe for HiTemp140 Rigid Transitional Diameter (TD) Metal Temperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA		 Temperature: -200 °C to +260 °C (-328 °F to +500 °F)
Probe only. Body must not exceed Operating Environment
Flexible Probe for HiTemp140 Flexible (FP) Bendable PTFE Temperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 60 PSIA		 When wet, the flexible probe cannot exceed 121 °C/1.1 bar. This includes any steam application.
Temperature: -60 °C to +260 °C (-76 °F to 500 °F)
Probe only. Body must not exceed Operating Environment
PT Probe for HiTemp140 PT Bendable Metal Temperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA		 Temperature: -200 °C to +350 °C (-328 °F to +662 °F)
Probe only. Body must not exceed Operating Environment
Fast Response Probe for HiTemp140 Fast Response (FR) Metal Temperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA		 Temperature: -200 °C to +260 °C (-328 °F to +500 °F)
Probe only. Body must not exceed Operating Environment
