The DHS Includes:
(1) HiTemp140-M12: High Temperature Data Logger

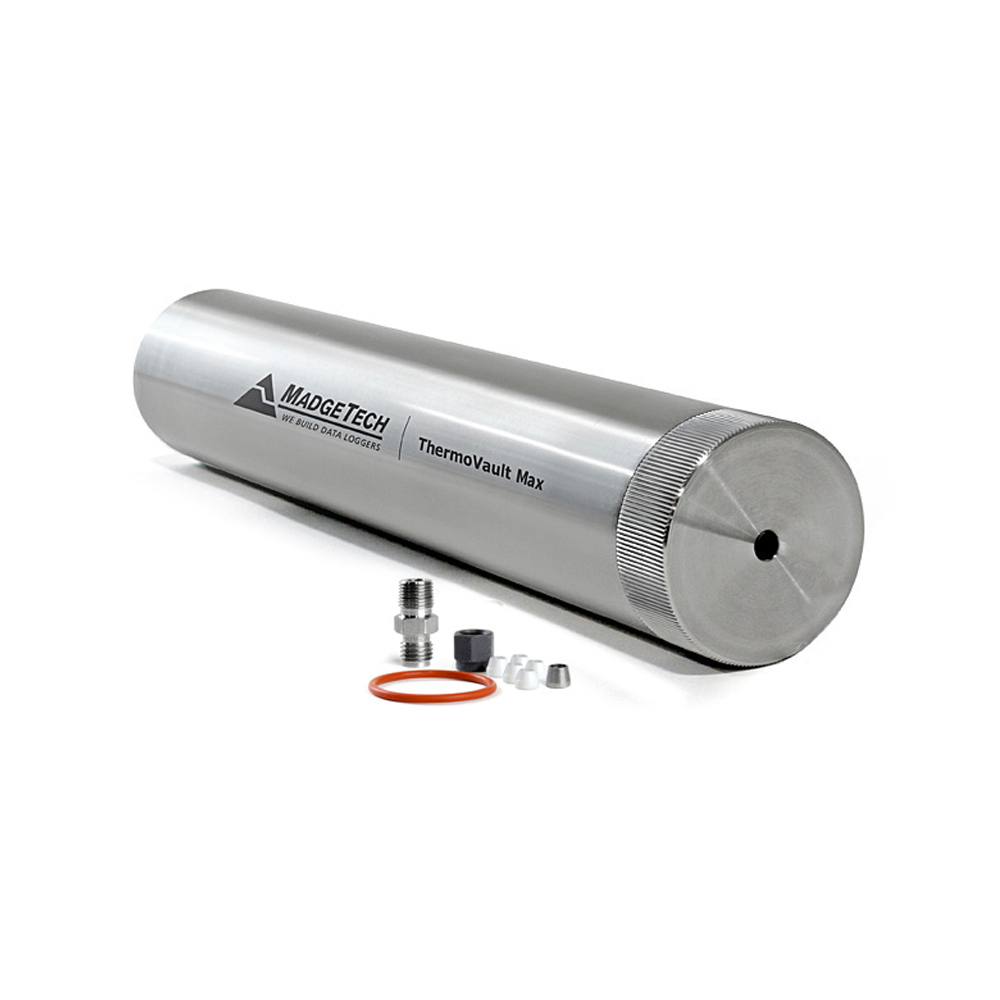

(1) ThermoVault Max: Extreme Temperature Thermal Barrier
(1) 36 in. Glass Braided RTD Probe with M12 Connector and Flat Probe Tip
The DHS is capable of withstanding and measuring temperatures up to
400 °C (752 °F), allowing it to record throughout the entire
sterilization process. It’s simple to use, just insert the HiTemp140-M12
into the ThermoVault Max enclosure, screw the cap back on securely and
the device is ready to deploy.
The HiTemp140-M12 can record and store up to 43,690 time stamped
readings and can utilize a wide variety of RTD probe options with its
M12 connection.
The DHS is compatible with the latest MadgeTech 4 Software making
starting, stopping, and downloading simple and easy. Graphical, tabular,
and summary data is provided for analysis and can be viewed as
customizable engineering units.
General
| Memory |
43,690 readings |
| Reading Rate |
4 readings per second up to 1 reading every 24 hours |
| Baud Rate |
125,000 |
| Battery Life |
1 year typical (1 minute reading rate at +25 °C / +77 °F) User Replaceable Battery |
| Material |
316 Stainless Steel, PTFE, Silicone |
| Dimensions |
1.75 in OD x 9.6 in L (44.45 mm OD x 243.8 mm L) |
| IP Rating |
This system is not IP rated and is for use in dry applications only |
| Operating Environment |
-200 °C to 400 °C %RH to 95 %RH non-condensing |
| Required Interface Package |

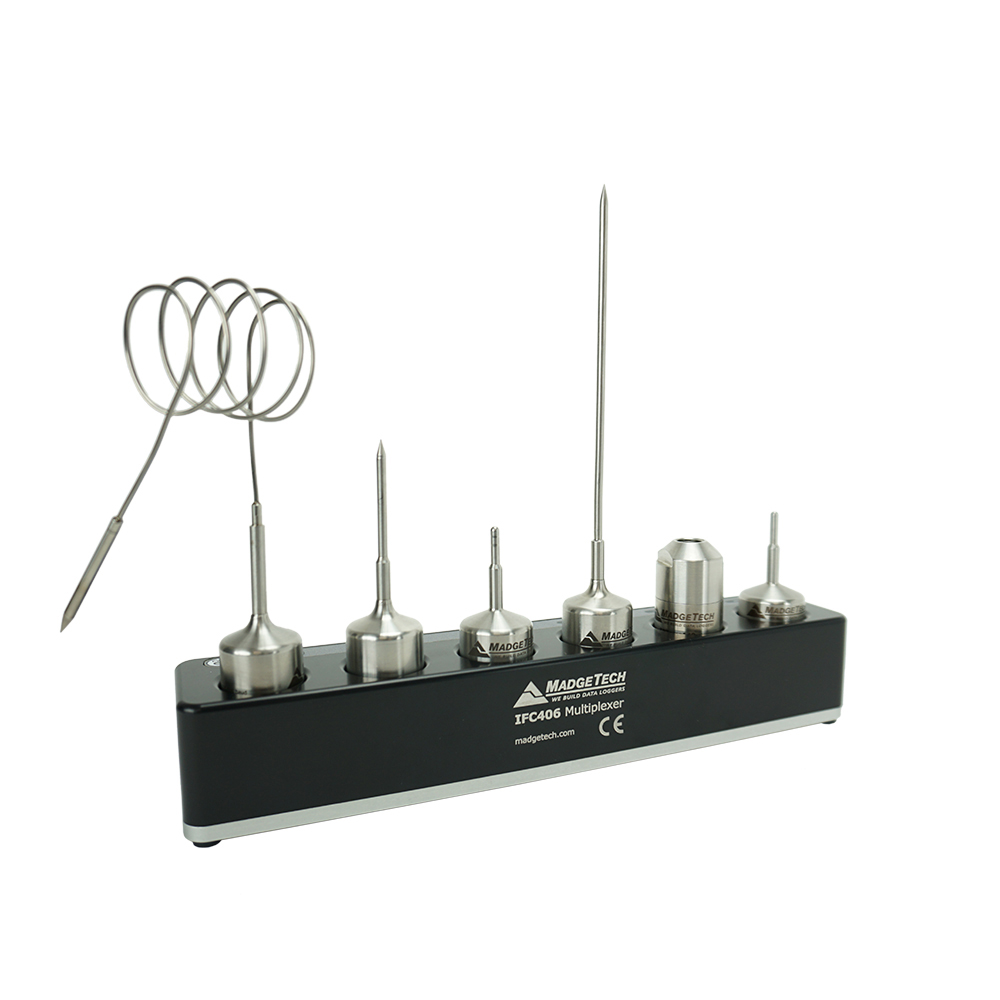

IFC400 or IFC406 |
| Approvals |
CE |
Temperature
| Temperature Sensor |
36 inch Glass Braided RTD depyrogenation probe |
| Temperature Range |
-200 °C to +400 °C |
| Temperature Resolution |
0.0001 Ω, 0.01 °C (0.02 °F) |
| Temperature Calibrated Accuracy |
±1.2 °C (-200 °C to +400 °C) |
