CryoTemp

CryoTemp — 900038-00

The CryoTemp is an ultra-low temperature data logger that records temperatures as low as -86 °C (-122.8 °F). This device features a compact design with a handle for easy attachment and is splash resistant (IP64).

The CryoTemp provides 32,767 date and time stamped temperature readings with an accuracy of ±1.0 °C (1.8 °F). Equipped with high/low alarm limits and high/low warning limits the user will be alerted when the temperature nears unacceptable levels preventing the loss of priceless perishables.

The CryoTemp is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Key Features:

Compact Size
Splash Resistant (IP64)
Configurable Alarms & Warnings

General

Memory	32,767 readings
Reading Rate	1 reading every 5 seconds up to 1 reading every 30 minutes
Single/Multi-Use	Multi-use
Battery Life	2 years typical at 25 °C, 1 min. reading intervals 1 year typical at -80 °C, 1 min. reading intervals
Material	ABS plastic
Dimensions	3.3 in x 2.1 in x 0.4 in, (83 mm x 54 mm x 11 mm)
IP Rating	IP64
Operating Environment	-86 °C to +35 °C (-122.8 °F to +95 °F), 0 %RH to 95 %RH
Required Interface Package	IFC300
Approvals	CE Approved for carriage on Delta® Mainline Flights

Temperature

Temperature Sensor	Thermistor
Temperature Range	-86 °C to +35 °C (-122.8 °F to +95 °F)
Temperature Resolution	0.1 °C (0.18 °F)
Temperature Calibrated Accuracy	±1.0 °C (1.8 °F)

Accessories

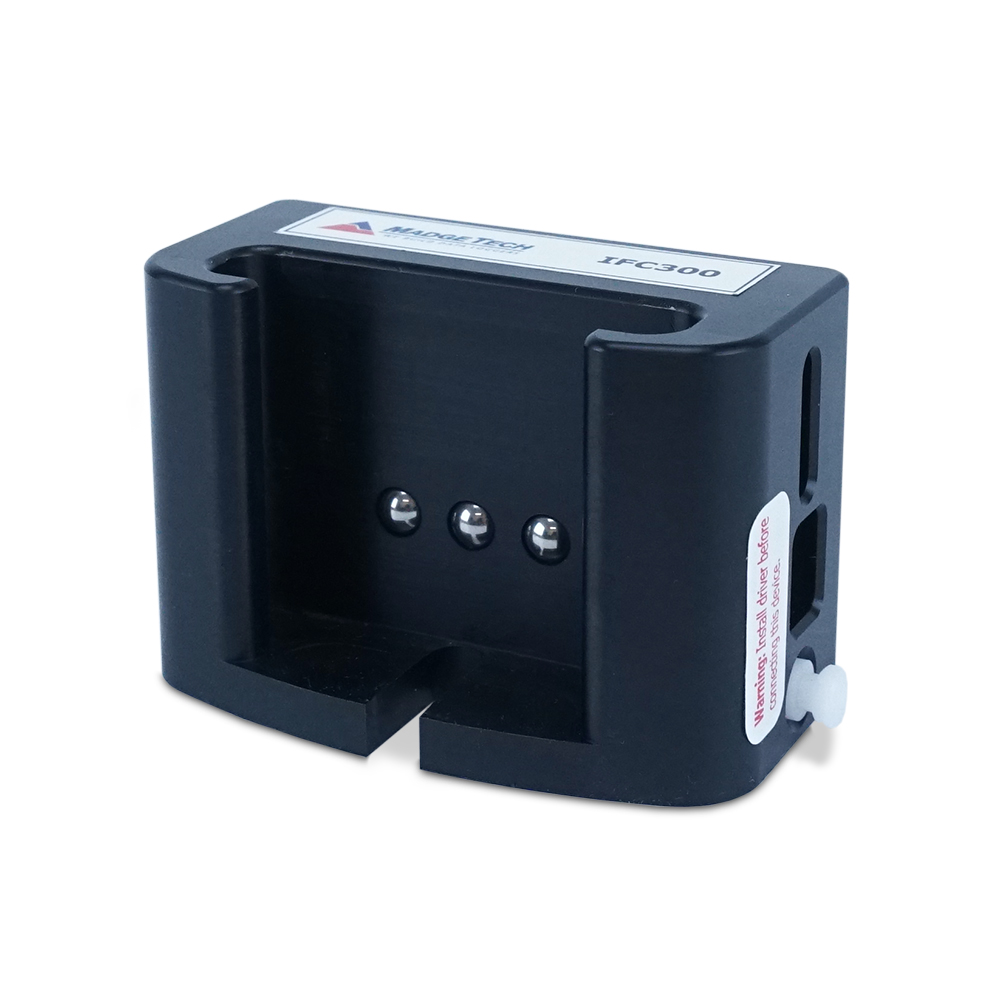

IFC300

Interface Cable Package for the LyoTemp, TransiTempII and CryoTemp Series Data Loggers.

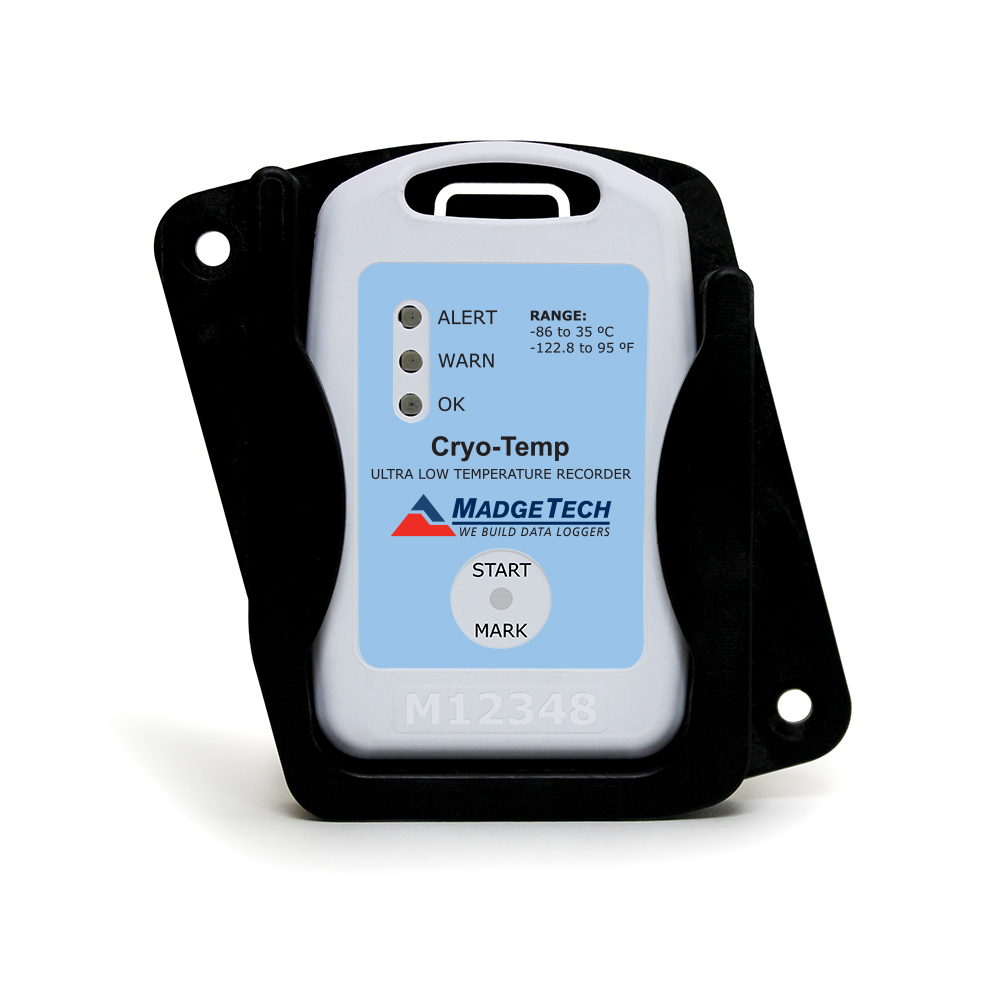

WM-300

Wall-mounting station that is built for use with the CryoTemp or LyoTemp.
