Cryogenic Valves
Cryogenic Shut-Off Valves
For effective use on cryogenic liquid cylinders or piping systems that may require an in line Shut-Off valve.
Features
• Compact, easy to install
• Dampproof, dustproof cover design, to prevent low temperature freezing
• Conical spiral seal, to prevent excessive wear of valve seat torsion
• Maximum Working Pressure: 600 psi (41.4 bar)
• Working Temperature: -320~165˚F (-196~74˚C)
• Conforms to CGA E-4 Standard for Gas Pressure Regulators
• Cleaned for oxygen service per CGA 4.1
Model
|
Model Number |
Inlet Connection |
Outlet Connection |
Diameter
in. (mm) |
Inlet Tube Length
in (mm) |
A Dimensions
in. (mm) |
Max. Cv |
|
V902 |
3/8" NPT (F) |
3/8" NPT (F) |
0.393 (10) |
N/A |
2.48 (63) |
0.98 |
| V902A |
ø16x1.5 mm |
3/8" NPT (F) |
0.393 (10) |
1-1/8 (28.5) |
3.46 (88) |
0.98 |
| V902B |
ø16x1.5 mm |
3/8" NPT (F) |
0.393 (10) |
2-1/8 (54.0) |
4.45 (113) |
0.98 |
| V902C |
ø16x1.5 mm |
3/8" NPT (F) |
0.393 (10) |
3-1/8 (79.5) |
5.47 (139) |
0.98 |
|
Cryogenic Check Valves
Suitable for cryogenic liquefied natural gas bottles or other
containers, effectively restricts flow in one direction
Features
• Gas Sevice：LNG, LO2, LN2, LAr, Non-corrosive gases
• Suitable temperature: -320 ~ 176oF ( -196 ~ 80oC)
• Opening pressure: ≦ 5 psi (0.34 bar)
• Design working pressure: 230 psi (16 bar)
• Max. working pressure: 360 psi (25 bar)
• Nominal diameter: DN=4.7mm
• Inlet / Outlet: 1/8"NPT(M)
• 100% Factory testing reverse sealing
• Cleaned for oxygen service per CGA 4.1

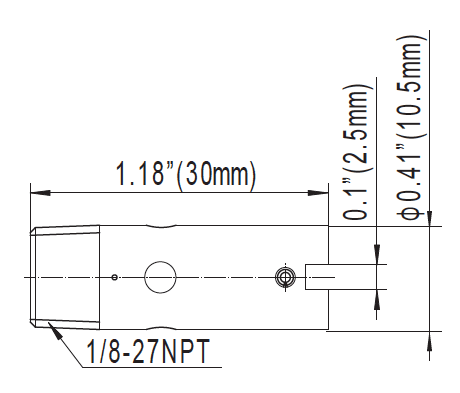

Dimension
|
Cryogenic Relief Valves
This safety valve is specifically designed for cryogenic gases, and can be used for pipeline systems, cryogenic
cylinders, or small cryogenic tanks. When the pressure in the system surpasses the preset pressure value, the
valve will automatically start relieving excess pressure.
Features
• Valve opens on preset value and reseats below 95%
• Operating Temperature: -321 ~ 165ºF (-196 ~ 74ºC)
• Available Set Pressure: 22 ~ 500 psi (1.5 ~ 34.5 bar)
• Conforms to CGA G-4.1 for cleaning components
• Constructed with oxygen compatible materials
LNG The storage tank (without lateral holes)
| Part Number |
Model Number |
Set Pressure |
Inlet Connection |
| 100055066 |
B-RV95-T120-NT4 |
120psi |
1/4"NPT |
| 100055010 |
B-RV95-T150-NT4 |
150psi |
1/4"NPT |
| 100055067 |
B-RV95-T230-NT4 |
230psi |
1/4"NPT |
| 100055065 |
B-RV95-T250-NT4 |
250psi |
1/4"NPT |
| 100055068 |
B-RV95-T300-NT4 |
300psi |
1/4"NPT |
| 100055064 |
B-RV95-T350-NT4 |
350psi |
1/4"NPT |
Color Coded Pressure Labels
| Set Pressure |
Colors |
Set Pressure |
Colors |
| 22psi |
Yellow |
230psi |
Blue |
| 35psi |
Purple |
250psi |
Pink Purple |
| 50psi |
White |
350psi |
Orange |
| 100psi |
Gray |
450psi |
Pink |
| 150psi |
Red |
500psi |
Light Blue |
Dewar bottle (with side hole)
| SS- |
RV95- |
T |
150- |
NT4 |
| Body Material |
Series |
Seat Material |
Set Pressure psi(bar) |
Inlet Connection |
SS: Stainless Steel
B: Brass |
RV95 |
F: Fluorosilicone
（Set Pressure：22、35、50、100 psi）
T: PTFE
（Set Pressure：150、230、350、450、500 psi） |
22(1.5), 35(2.4), 50(3.5),
100(6.9), 150(10.3), 230(15.9),
350(24), 450(31), 500(35) |
NT4: 1/4"NPT
NT6: 3/8"NPT
NT8: 1/2"NPT |
|
Excess Flow Valves
Used in cryogenic liquid cylinders or piping systems to prevent
uncontrolled release of cryogenic fluid in the event of a rupture or
abnormal excess of flow downstream of the pipeline.
Features
• Maximum working pressure: 580 psi (40 bar)
• Working temperature: -320~176oF (-196~80oC)
• Cleaned for oxygen service per CGA 4.1, suitable for use under pure oxygen environment
Model
| Flow Options |
Shut Off The Flow Value L/min |
Pressure Difference psi(bar) |
Min. Work Pressure psi(bar) |
| Standard Flow |
23.3 |
40 (2.8) |
80 (5.6) |
| Medium Flow |
15 |
40 (2.8) |
80 (5.6) |
| Low Flow |
10 |
14.5 (1) |
29 (2) |
Note: The product off the flow value is 15°C water test results
If the use of different media, the conversion of Q=Q1* V (P1/P)
(Q1 is water off the flow value, P1 for water density, Q for medium off flow value, P as medium density)
| SS- |
EV41- |
NT6- |
TF10M- |
M |
| Body Material |
Series |
Inlet Connection |
Outlet Connection |
Flow Options |
| SS: Stainless Steel |
EV41：Straight Pattern
EV45：Angle Pattern |
NT6：3/8″ Male NPT |
TF10M：10mm GENLOK
TF12M：12mm GENLOK
TF14M：14mm GENLOK |
None Standard Flow
M：Medium Flow
L：Low Flow |
|
Burst-Disc
The Burst Disc is designed for use with cryogenic storage vessels
with insulation, piping, or other confined spaces to prevent
over-pressurization. It is often used as part of a pressure relief
system. When used with a pressure relief valve, it acts as an emergency
option to relief excess pressure. In the event the relief valve fails to
open, the burst disc shall rupture to release excess pressure.
Features
- Suitable for gas, liquid two kinds of medium and high pressure
conditions of blasting
- Working temperature：-320~158 oF (-196~70 oC)
- The burst pressure of the maximum working pressure up to 80%
Model
| Model Number |
Max. Working Pressure psi(bar) |
Diameter
in. (mm) |
Explosion
Pressure
psi (bar) |
Connection |
| B-RP350S-NT4 |
280 (19.3) |
0.25 (6.35) |
350 (24.1) |
1/4 NPT(M) |
| B-RP530S-NT4 |
420 (30.0) |
0.25 (6.35) |
530 (36.5) |
1/4 NPT(M) |
| B-RP650S-NT4 |
520 (35.9) |
0.25 (6.35) |
680 (46.9) |
1/4 NPT(M) |
|
Cryogenic Check Valves
Suitable for cryogenic liquefied natural gas bottles or other
containers, effectively restricts flow in one direction
Features
• Gas Sevice：LNG, LO2, LN2, LAr, Non-corrosive gases
• Suitable temperature: -320 ~ 176oF ( -196 ~ 80oC)
• Opening pressure: ≦ 5 psi (0.34 bar)
• Design working pressure: 230 psi (16 bar)
• Max. working pressure: 870 psi (60 bar)
• Nominal diameter: DN=16mm
• Inlet / Outlet: 1/2"NPT(F)
• 100% Factory testing reverse sealing
• Cleaned for oxygen service per CGA 4.1

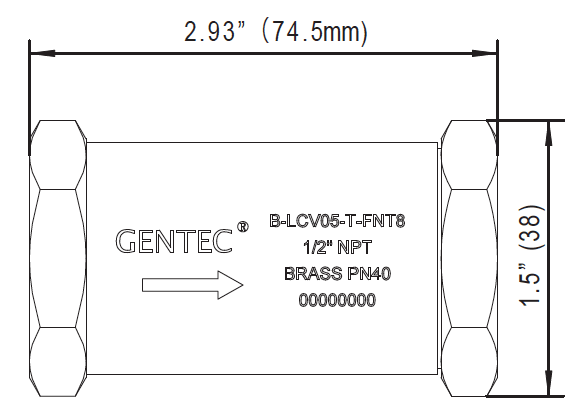

Dimension
|
|
|
|
|
|
|
|
