Test Meters - Electrical

Ac Current, Voltage and Wattage Transducers

OM-10 Series Watt Transducers 0.2% Accuracy Isolated Models Available with 4-20 mA or 0-1 mA Outputs	OM11 Series Combined Watt/VAR Transducers 0.2% Accuracy Both Watt and VAR Output Provides Isolation	OM8 Series ac Voltage and Current Measurement Transducers Average Measurement Isolation 0-1 mA and 4-20 mA Outputs Available

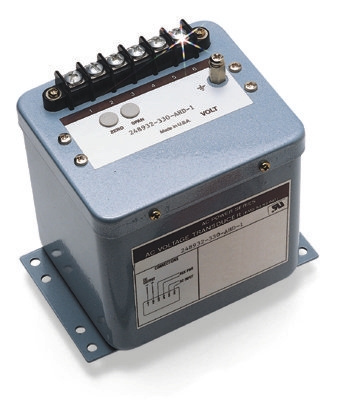

OM9 Series ac Current and Voltage Transducers, True RMS Measurement True RMS Measurement Isolation 0-1 mA and 4-20 mA Outputs Available	PSDIN-41000R and PSDIN-42000B Series DIN Rail Mounting Linear Power Supplies DIN Rail Mounting Low Ripple, Low Noise Isolated Input to Output LED Indicator for Power On

Current and Voltage Sources for Test Applications

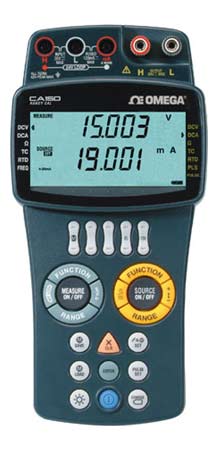

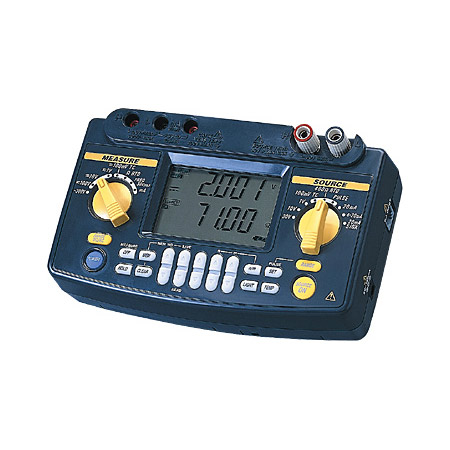

CA150 Multi-Functional Handheld Calibrator Highly Accurate Within 0.02% of the DC Voltage Range for Source and Measure Source and Measurement can be Performed Simultaneously Vertical Body with Large Screen Display	CA71 Compact Multifunction Calibrator Simultaneously Source and Measure Voltage, Pulse, Current, Resistance, Thermocouple, RTD, Frequency Signals Autostep, Sweep, and Memory Functions	CL20 Series Temperature Calibrator 0.5°F Accuracy Over the Range of 18°C to 28°C (64°F to 82°F) NIST Traceable Certificate of Calibration Simulates and Measures Thermocouples, RTDs, Thermistors and Ohms 0.1°F/0.1°C Resolution	CL3001 Lab Calibrator 0.0025% Calibration Accuracy Source/Read Thermocouple, RTD, Voltage, Current and Pressure Custom RTD and SPRT Profiles RS232, USB and IEEE-488 Remote Control

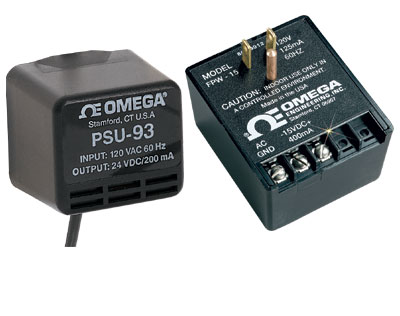

CL601K OMEGA SCIENTIFIC™ Calibration Simulators Model CL601 Thermocouple Simulator K (Model CL601K) J (Model CL601J) 0.61 m (2') Cable with Male SMP Connector Common Check Points in °C and °F Model PHCL-602 pH Simulator	PSU-93 and FPW-15 DC POWER SUPPLIES PSU-93: Output Power - Unregulated 16 to 23 Vdc FPW-15: Output Power - Regulated 15vdc at 400mA Plug in Style Used for Pressure and Temperature Tranducers Economical Low Cost Solution	PSU505 Linear Power Supply Liquid Crystal Display Programmable Triple Outputs (Auto-Ranging Function on Channel 3) Low Ripple, Low Noise Number and Function Keys 100 Store and Recall Settings Timer (1 second to 100 hours)

Clamp-on Digital Multimeters for Test Applications

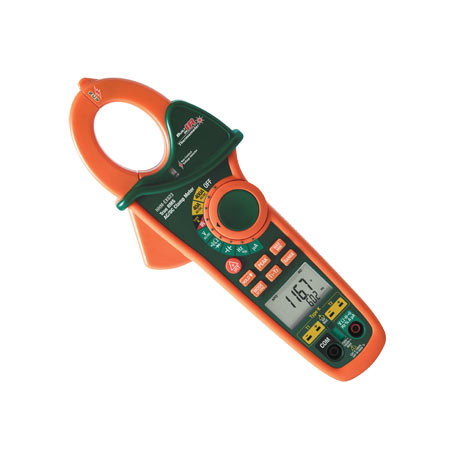

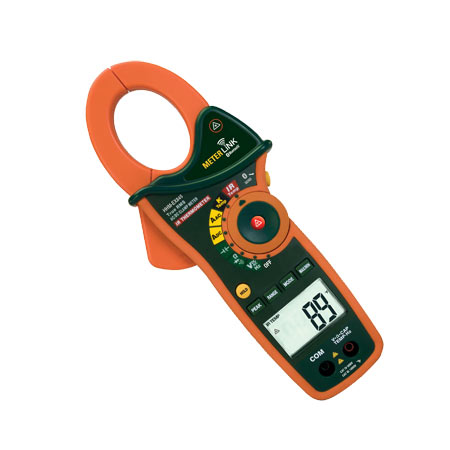

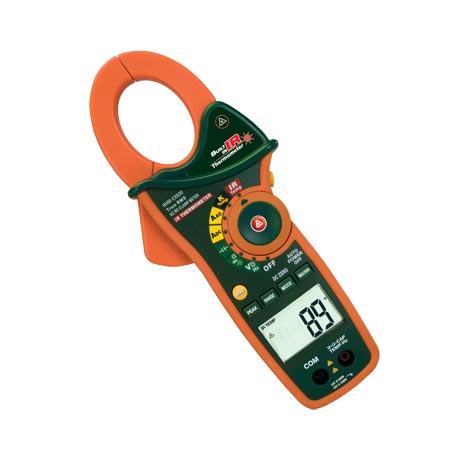

HHM-EX623 Clamp Meter 400 A Dual Input with Non-Contact Infrared Thermometer and Voltage True RMS Measurements for Accurate AC Voltage and Current Measurements Dual Type K Thermocouple Input with Differential Temperature Function (T1, T2, T1-T2) Built-In Non-Contact Voltage Detector with LED Alert	HHM-EX830 1000A Clamp Meters with Infrared Thermometer Non-Contact Infrared Temperature Measurements with Laser Pointer True RMS Current and Voltage Measurements Peak Hold Captures Inrush Currents and Transients Include AC/DC Voltage, Resistance, Capacitance, Frequency, Type K	HHM-EX845 CAT IV 1000A Clamp Meter with Infrared Thermometer Built-In Non-Contact Infrared Thermometer Design with Laser Pointer Wireless Communication with OSXL-T620 (FLIR T620) Thermal Imaging Camera Cat IV Safety Rating for Industrial Applications True RMS Current and Voltage Measurements	HHM-MA1500 1500A True RMS AC/DC Clamp Meter and Non-Contact Voltage True RMS for Accurate Readings of Non-Sinusoidal Waveforms Built-In Non-Contact Voltage Detector with Led Alert 52 mm (2.0") Jaw Size for Conductors up to 500MCM Dual 40,000/4000 Count, Backlit LCD Display
HHM-MA640 600 A True RMS Clamp Meters and Non-Contact Voltage True RMS for Accurate Readings of Non- Sinusoidal Waveforms Built-In Non-Contact Voltage Detector with LED Alert 40 mm (1.5") Jaw Size for Conductors up to 500 MCM 6000 Count, Backlit LCD	HHM59 DMM/Thermometer With AC Clamp Feature Measures - Current to 1000 A ac - Voltage to 750 Vac, 1000 Vdc - Resistance to 2 MOhm Direct Temperature Readout for Type K Thermocouple 2" Jaw Opening Peak Hold Feature Captures Current Surges	HHM590 Series Clamp-On Digital Multimeters GS-Mark EN61010-1 Approval Voltage Category III 600 V, Pollution Degree II AC/DC Current Clamp Highly Accurate 1999, 2500, 3999, 4300 Counts Resolution MAX, Data Hold, PEAK, Æ ZERO Functions	HHM61 Compact DMM/AC Clamp Meter and Digital Thermometer Measures: Current to 400 A ac; Voltage to 750 Vac, 400 Vdc; Resistance to 400 Ohms Reads Type K Thermocouple Directly Diode Test Function Peak Hold Feature Recessed Safety Test Lead Input Jacks
OMEGAETTE® HHM221 Mini Current Clamp Meter Pocket Size DATA HOLD Function Autoranging

Phase Sequence and Motor Rotation Indicators

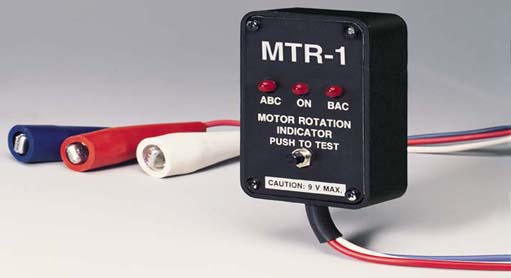

MTR-1

Motor Rotation Indicator – Clockwise or Counter-Clockwise Motor Rotation

Gives Proper Connection Sequence
No External Power Required
Solid State Construction

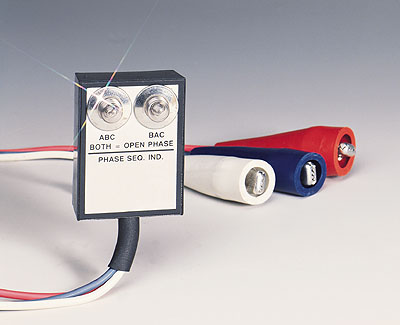

PHSEQ

OMEGALUX® Phase Sequence Indicator

Covers Range from 115 to 700 V
Auto-Ranging
Rugged, Solid State Design

Test Leads and Accessories

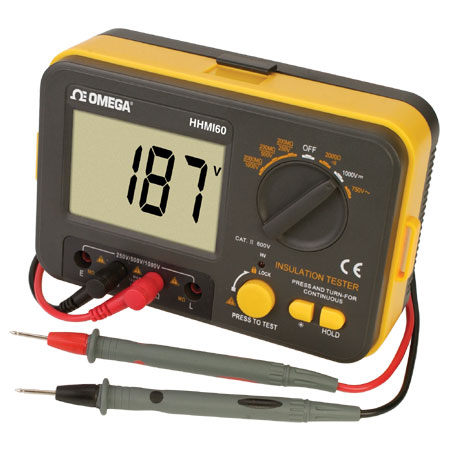

HHMI60 Series

Insulation Tester

An Accurate, Reliable and Easy to Use Insulation Tester
Large LCD Display, Easy to Read
Strong Anti-Magnetic and Anti-Jamming Function
Full Function Protection, Anti-High Voltage Circuit Design
Unit Symbol Display

PSU505

Linear Power Supply

Liquid Crystal Display
Programmable Triple Outputs (Auto-Ranging Function on Channel 3)
Low Ripple, Low Noise
Number and Function Keys
100 Store and Recall Settings
Timer (1 second to 100 hours)
Precise Voltage and Current Measurement

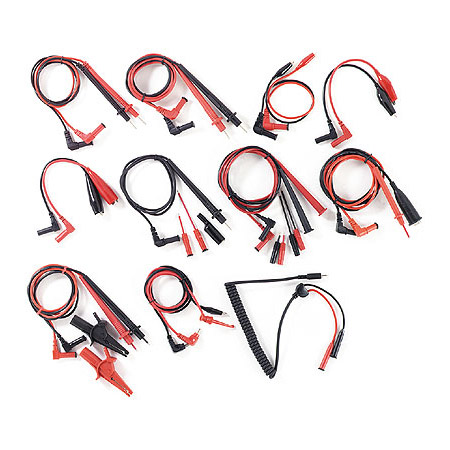

HHM-TL and TL Series

Test Lead Set Accessories for DMM's

Voltage, Current and Frequency Panel Meters for Test Applications

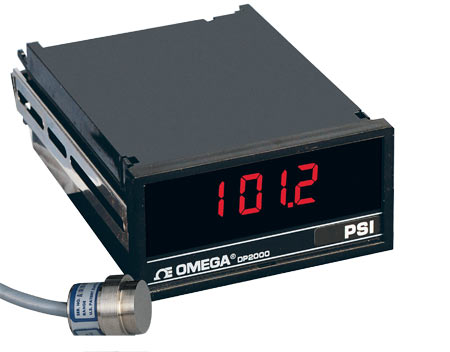

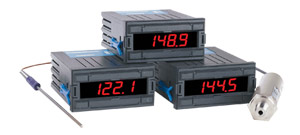

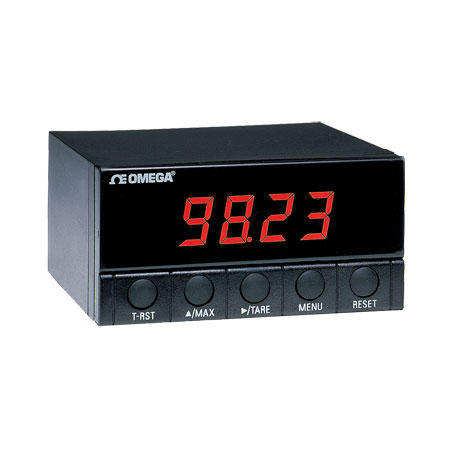

DP18 Series 1/8 DIN Economical Digital Meters for Temperature, Process or Electrical Measurement Modular Design Options for Alarms, Analog Output of Communications 3 1/2-Digit LED Available in Red or Green Displays Removable Screw-Clamp Cable Connector	DP2000 1/8 DIN OMEGAROMETER® DP2000 Series Process & Strain Monitors LED or LCD Displays Available Scalable to Display in Engineering Units Field Installable Control or Analog Output Options Available for Temp, AC or DC Voltage or Current, Frequency, Process Signals and Strain Gage Bridges	DP24-E 1/8 DIN Economical Process Meter User Friendly 24 Vdc or 10 Vdc for Transducer Excitation Easily Scaled in Any Engineering Unit from -1999 to 9999 Front Panel Min or Max and Tare Functions External Display Hold and Tare	DP25-VRMS & DP25-CRMS 1/8 DIN High Accuracy True-RMS Scalable Indicator for AC Sinusoidal and Non-Sinusoidal Signals AC Voltage and Current Inputs High 0.1% of Reading Accuracy 4-Digit, 14 Segment LED Display, Red or Green Exceptional Noise Rejection Current or Voltage Inputs

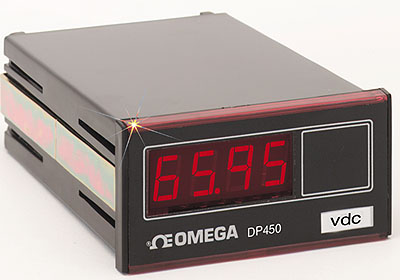

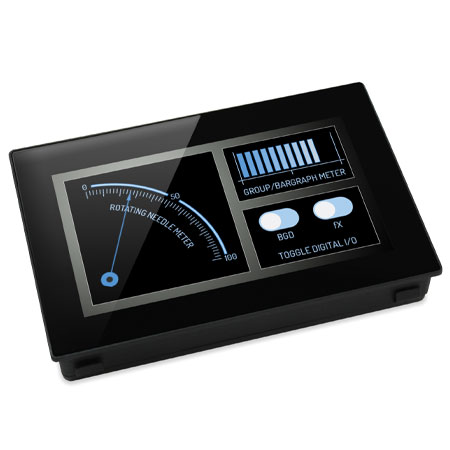

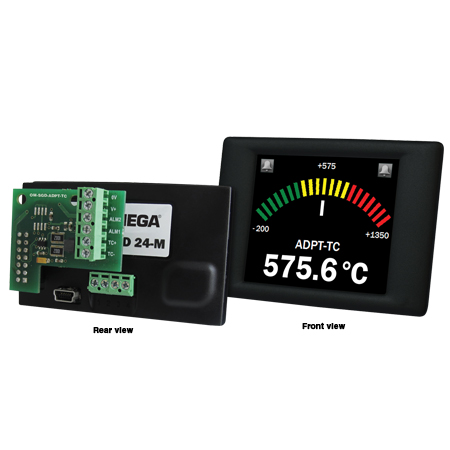

DP450 Series 1/8 DIN Low Cost Digital Panel Meter for Process, Voltage, Frequency or Current Inputs with Optional Alarm or Excitation Supply 1/8 DIN Size 3 1/2 Digit Display Large .56" Red LED Display Jumper Selectable Ranges AC Voltage: 0 to 199.9mV, 0 to 1.999V, 0 to 19.99V, 0 to 199.9V, 0 to 600V	OM-SGD-43-A Programmable Smart Graphics Display 4.3" Capacitive Touchscreen Low Profile Panel Mount Display Accepts Four Bipolar Analog Inputs up to ±40V Eight Digital I/O Two Alarm Outputs Four 8-Bit PWM Outputs	OM-SGD-ADPT-TC Thermocouple Signal Conditioning Module Mounts Directly on the Back of Compatible OM-SGD Series Smart Graphics Displays Accepts Type J, K or T Thermocouple (User-Selectable via PC Software) Powered from the OM-SGD Series Display Configurable High and Low Alarms	OM-SGD-SERIES Smart Graphics Displays Color TFT Display—Choice of Three Screen Sizes Software Configurable—Multiple Display Configurations Included to Begin Programming Panel Mount Voltage or Current Input Models Two NEMA 6 (IP67) Waterproof (-IP) Models
